Revolutionizing Stock Receiving Using WhatsApp, Computer Vision, and Intelligent Automation
Managing inventory shouldn't require spreadsheets, manual data entry, or expensive barcode scanners.
Imagine your warehouse staff simply taking a photo of a product, sending it through WhatsApp, and your inventory updating automatically.
That's exactly what we built.
🛑 The Problem
Every warehouse, retail shop, supermarket, and distributor faces the same challenge:
- Employees manually enter stock.
- Wrong product names create duplicate inventory.
- Staff forget SKUs.
- Data entry takes time.
- Inventory becomes inaccurate.
Traditional inventory systems require operators to sit in front of a computer. But warehouse workers already use WhatsApp.
So why not turn WhatsApp into the inventory management interface?
⚡ Our Solution
We developed an intelligent WhatsApp Inventory Receiving System powered by:
- n8n Automation
- WhatsApp Cloud API
- GPT-4 Vision
- PostgreSQL
- AI Product Recognition
Instead of filling forms, staff simply send a product image through WhatsApp. The AI handles the rest.
🔄 How the Workflow Works
Step 1 — Receive WhatsApp Message
The workflow begins with the WhatsApp Cloud API Trigger.
Whenever a warehouse employee sends:
- A product image
- Product name
- SKU
- Quantity
The workflow starts automatically—no manual intervention required.
Step 2 — Extract Message Information
The automation immediately extracts:
- Phone Number
- Business ID
- Message Type
- Media ID
- Text Message
This allows the workflow to understand exactly what kind of request it has received.
Step 3 — Check Pending Conversations
Inventory updates are conversational.
For example:
- Employee: Coca Cola
- System: How many units?
- Employee: 24
Instead of forgetting context, our workflow stores temporary conversation states inside PostgreSQL.
Every incoming message checks whether the user already has a pending action. Possible states include:
- Awaiting Quantity
- Awaiting Product Selection
This creates a seamless chat experience.
💬 Intelligent Inventory Conversations
Unlike traditional chatbots, this workflow remembers what the employee is doing.
Example:
- Employee: 📷 Uploads product image
- AI: I recognized this as Coca Cola 500ml. How many units are you adding?
- Employee: 36
The inventory updates instantly. No forms. No typing product IDs.
👁️ AI Vision Identifies Products Automatically
This is where the workflow becomes truly intelligent. When an image is received:
- Download media from WhatsApp Cloud API
- Send image to GPT-4 Vision
- AI identifies the product accurately
- Match against inventory database (PostgreSQL)
- Ask only for the missing information (e.g., quantity)
For example:
- Employee uploads: 📷 Pepsi Bottle
- GPT-4 Vision replies: Pepsi 1L Bottle
- Database finds:
SKU-PEP-001 - System asks: How many units are you adding?
This removes almost all manual data entry.
🎯 Automatic Database Matching
Once GPT-4 identifies the product, PostgreSQL performs intelligent matching using:
- Product Name
- SKU
- Business ID
Even if employees don't remember exact product codes, the system still finds the correct inventory item.
🛡️ Smart Fallback Handling
AI isn't always 100% confident. Instead of failing, the workflow gracefully switches to a human-friendly fallback.
Example:
"I couldn't confidently identify this product. Please reply with the product name or SKU."
This keeps the workflow reliable even when images are blurry or unfamiliar.
📊 Inventory Updates in Real Time
Once the product and quantity are confirmed, the workflow automatically:
- Updates stock quantity
- Removes pending actions
- Saves transaction log
- Sends confirmation through WhatsApp
Example:
✅ Stock Updated
Product: Coca Cola 500ml
Current Stock: 486 Bottles
Everything happens automatically within seconds.
🛠️ Why n8n?
This project was built using n8n because it offers exceptional flexibility for AI-powered automation.
Key Advantages:
- Visual Workflow Builder: Clear multi-branch visual debugging
- Self-Hosted Architecture: Complete data privacy & zero vendor lock-in
- Easy API Integrations: Direct webhook triggers and HTTP request nodes
- Powerful Branching Logic: Conditional IF, Switch, and state persistence
- Database Connectivity: Direct SQL queries with PostgreSQL
- Production-Ready Scalability: Built for heavy enterprise volume

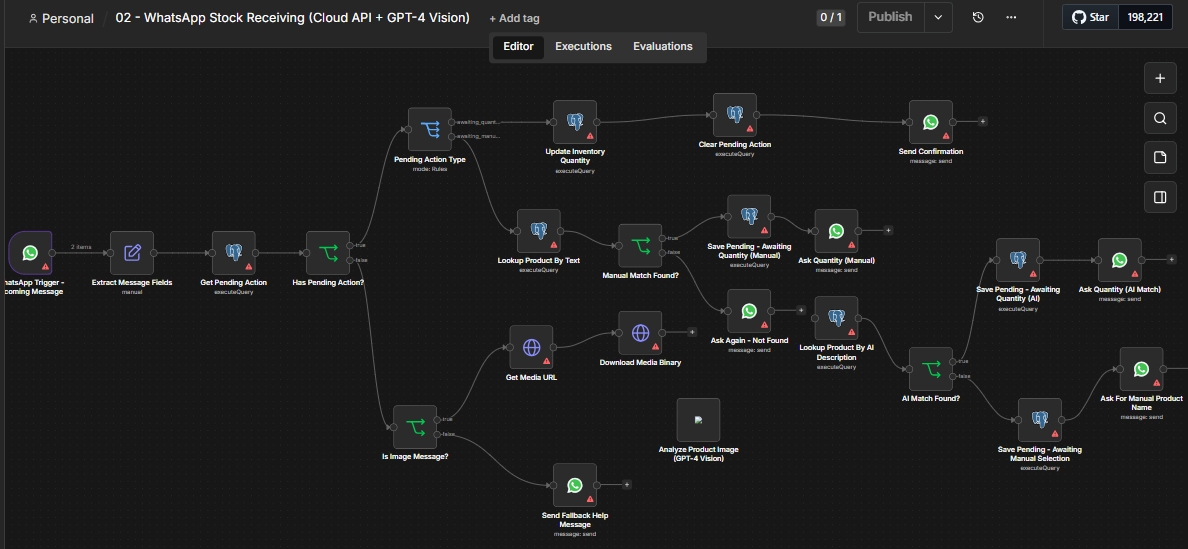

The workflow includes intelligent decision-making using multiple IF, Switch, PostgreSQL, HTTP, OpenAI, and WhatsApp nodes working together to automate the entire stock receiving process.
💻 Tech Stack
- Automation Engine: n8n
- Messaging Platform: WhatsApp Cloud API
- AI Model: GPT-4 Vision
- Database: PostgreSQL
- Media Processing: HTTP API
- Language Understanding: OpenAI
- Inventory Logic: SQL + AI Workflow
✨ Key Features
- ✅ WhatsApp-based stock receiving — zero app installs needed
- ✅ AI product recognition — instant visual ID via GPT-4 Vision
- ✅ Intelligent inventory conversations — context-aware chat states
- ✅ Automatic product matching — fuzzy search against PostgreSQL database
- ✅ Pending conversation tracking — stateful session storage
- ✅ Real-time inventory updates — instant stock incrementing
- ✅ Smart AI fallback handling — graceful error recovery
- ✅ Fully automated workflow — end-to-end hands-free operational flow
📈 Business Benefits
This automation significantly improves warehouse operations by:
- Reducing manual inventory work by up to 80%
- Minimizing stock entry errors and duplicate product creation
- Eliminating spreadsheet dependency completely
- Speeding up stock receiving from minutes to seconds
- Improving inventory accuracy with real-time tracking
- Reducing employee training time since everyone already knows WhatsApp
- Scaling effortlessly across multiple warehouses and branches
🎯 Perfect For
This solution is ideal for:
- Retail Stores & Supermarkets
- Grocery Chains & FMCG Distributors
- Warehouses & Distribution Centers
- Pharmaceutical Suppliers
- Electronics & Hardware Retailers
- Manufacturing Units & Assembly Plants
- Multi-branch Wholesale Operations
🚀 Final Thoughts
This project demonstrates how AI and automation can simplify one of the most repetitive business processes—inventory receiving.
By combining WhatsApp, GPT-4 Vision, PostgreSQL, and n8n, we've created a conversational inventory assistant that recognizes products, understands employee responses, maintains conversation context, and updates stock automatically in real time.
The result is a faster, smarter, and more accurate inventory management experience that reduces manual effort while improving operational efficiency.
